23 July 2013

如何安装PCLint9

安装和配置生成lnt

  • PCLint9的安装与之前的版本大同小异。需要注意的创建lnt脚本的过程中,配置项的选择需要增加VS2008环境。建议在include的时候添加windows sdk的include目录。

集成到vs2008

2 points is very importent!

  • 在创建tool中的ext tool选项卡的时候,输入命令行参数时,输入重定向字符‘>‘,居然提示不支持。好在PCLint本身有一个-os的选项。用法要参照man.pdf中的提示,需要将重定向文件选项及文件名放在工程文件名前面。

  • 在创建选项卡命令行的过程中,vs2008的环境变量(所谓的外部依赖工具运行参数),在msdn中有详细描述。与VC6有很大的不同,照抄网上之前的vc6配置会找不到相应的变量。提示使用命令行参数输入框后面的提示按钮!

关于PCLINT的集成方法在PCLint的官网上其实有专门的介绍,在here

a sample


add menu contents:

Title:			PC-lint (Project Creation)
Command:        c:\lint\lint-nt.exe
Arguments:      -v -os("$(TargetName).lnt") "$(ProjectFileName)"
Init. Dir.:		$(ProjectDir)

Title:			PC-lint (Project Check)
Command:        c:\lint\lint-nt.exe
Arguments:      -i"c:\lint" std.lnt env-vc9.lnt "$(TargetName).lnt"
Init. Dir.:		$(ProjectDir)

Title:          PC-lint (Unit Check)
Command:        c:\lint\lint-nt.exe
Arguments:      -i"c:\lint" std.lnt env-vc9.lnt --u "$(TargetName).lnt" "$(ItemPath)"
Init. Dir.:		$(ProjectDir)

!note

将sample中的path替换成本机的path呦

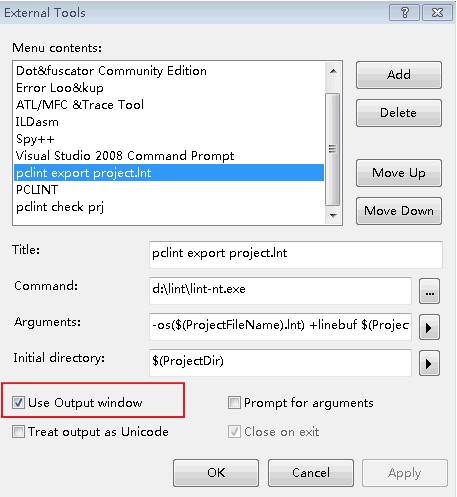

截图示意
